In foundation construction projects such as bridge piling, highway overpasses, and deep pile drilling works, selecting the right rotary drilling rig directly affects productivity, fuel consumption, and long-term project cost.
The SANY SR235 and XCMG XR240 are two widely used mid-range rotary drilling rigs in global construction markets. Both models are commonly seen in urban infrastructure and medium-depth foundation projects, especially in Asia, Africa, and the Middle East.

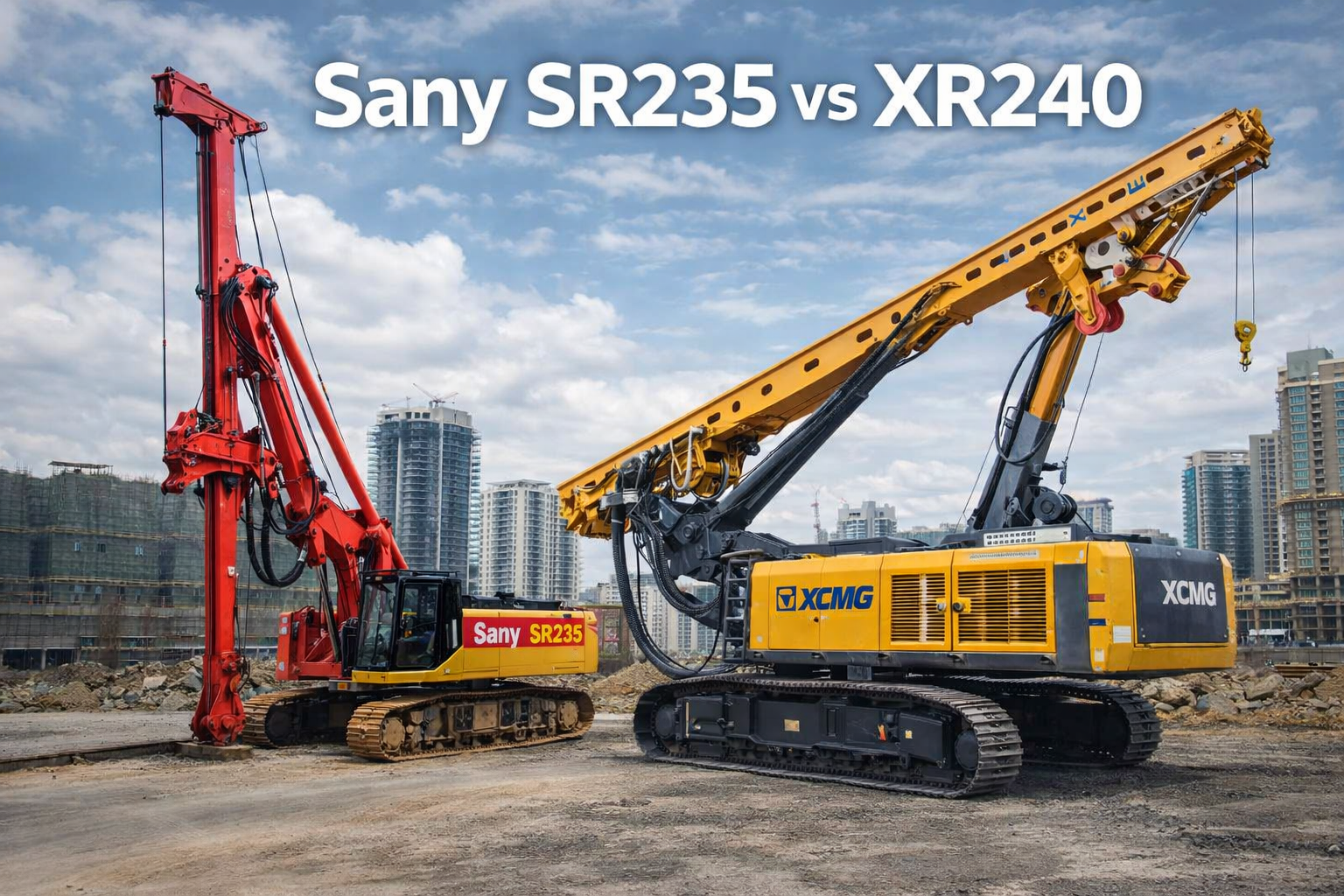

Overview: SANY SR235 vs XCMG XR240
| Feature | SANY SR235 | XCMG XR240 |
|---|---|---|
| Torque | 235 kN·m | 240 kN·m |
| Engine | Cummins / Isuzu | Cummins / Yuchai |
| Working Weight | ~24–26 tons | ~24–26 tons |
| Max Drilling Depth | 35–40 m | 35–40 m |
| Price Range (Used, 2026) | $180,000 – $300,000 | $160,000 – $280,000 |
Key takeaway: Both rigs are almost identical in size and capabilities. Small differences in components, chassis design, and system technology can affect long-term performance and operating costs.
Chassis & Stability

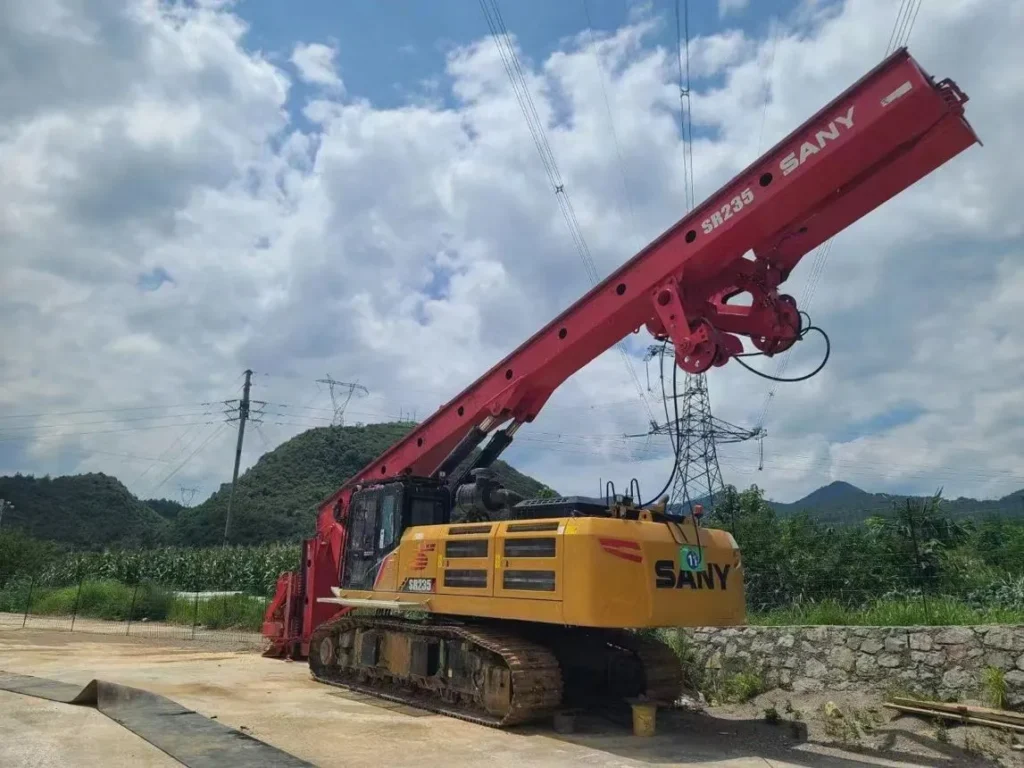

SANY SR235
- Uses SANY’s custom rotary drilling chassis, designed for high stability and vibration resistance.
- Features reinforced joints, making it suitable for hard soil conditions and deep foundation projects.

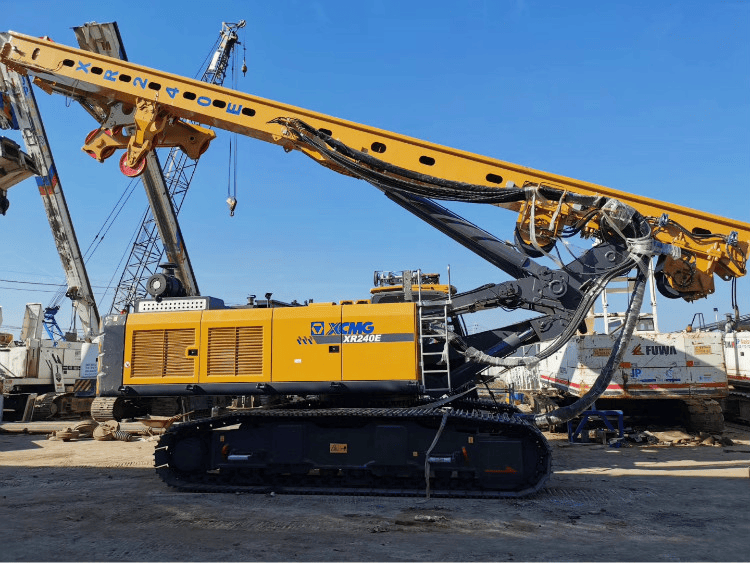

XCMG XR240
- Equipped with a dedicated hydraulic crawler chassis, but optimized for compactness and mobility.
- Allows easier maneuvering and operation in tight urban spaces, making it ideal for projects with limited working areas.
Verdict: SR235 is more robust for heavy-duty projects, while XR240 offers better flexibility for urban or confined construction sites.
Technical Features & System
SANY SR235
- Power System: Often equipped with Isuzu engines, focusing on optimized power distribution and faster response. Achieves 10–15% improved fuel efficiency.
- Intelligent Features: Includes a Kelly bar visualization locking system that shows real-time lock status, reducing misoperation and wire rope wear.
XCMG XR240
- Hoist Technology: Uses single-layer main and auxiliary hoist ropes, extending wire rope lifespan 2–4 times compared to multi-layer ropes, reducing long-term costs.
- Structural Optimization: Employs a dual-arm parallelogram swing mechanism for wider support angles and strong construction stability.
Verdict: Both rigs integrate advanced systems, but SANY focuses more on intelligent operation and energy efficiency, while XCMG emphasizes long-lasting hoist technology and structural versatility.
Real Working Conditions Comparison
When comparing the SANY SR235 and XCMG XR240, the most important factor is not only technical specifications, but also real construction working conditions. Both rigs are designed for medium to large foundation projects, but their performance advantages appear in different environments.
SANY SR235 – Best Suitable Conditions
The SANY SR235 performs best in demanding and heavy-duty drilling environments, especially where stability and torque are critical.
It is commonly used in:
- Hard soil and mixed ground conditions
- Deep foundation drilling projects
- Bridge piling construction
- Long-term infrastructure projects with continuous operation
Thanks to its stronger structural rigidity and stable chassis design, the SR235 is preferred for projects that require consistent performance under heavy load conditions.
XCMG XR240 – Best Suitable Conditions
The XCMG XR240 is more flexible in operation and better suited for projects with space limitations or variable working conditions.
It is commonly used in:
- Urban construction projects
- Confined or narrow job sites
- Short-term or fast-moving contracts
- Medium soil conditions such as clay or sand layers
Its compact design and maneuverability make it highly efficient in city infrastructure projects where working space is limited.
Maintenance & Operating Cost Comparison
Operating cost is a key factor when selecting a used rotary drilling rig, especially for contractors managing long-term projects or multiple job sites.
Hydraulic System Maintenance
The hydraulic system is one of the most important components in both rigs.
- SANY SR235: Requires regular maintenance due to higher working load, but components are widely supported in global markets.
- XCMG XR240: Hydraulic system is slightly simpler in design, which can reduce certain maintenance complexity.
Fuel Consumption Differences
Fuel efficiency directly affects daily operating cost.
- SR235: Slightly higher fuel consumption due to stronger torque output and heavier structural design.
- XR240: More fuel-efficient in medium soil conditions and shorter drilling cycles.
Spare Parts Availability
Spare parts accessibility plays a major role in downtime reduction.
- SR235: Strong global parts network, especially in Africa, Southeast Asia, and the Middle East.
- XR240: Generally lower parts cost, with good availability in Asian and developing markets.
Downtime Risk
Downtime is often more costly than maintenance itself.
- SR235: Lower risk in heavy-duty work environments due to stronger structural durability.
- XR240: Lower repair cost but may require more frequent checks under intensive use.
Best Use Cases
| Rig | Best Fit For |
|---|---|
| SANY SR235 | Heavy-duty projects, long-term contracts, reliability-focused clients |
| XCMG XR240 | Budget-conscious projects, urban construction sites, short- to medium-term contracts |
Pro tip: A 3–5-year-old used drilling rig from either brand can provide excellent ROI if inspected carefully.
Used Machine Buying Risk Checklist
What to Check Before Buying Used SR235 or XR240
When purchasing a used rotary drilling rig, careful inspection is essential to avoid hidden repair costs and unexpected downtime. Both the SANY SR235 and XCMG XR240 require detailed evaluation before final purchase.
Engine Hours Authenticity
Always verify the real working hours instead of relying only on displayed data.
- Check ECU records if available
- Compare wear condition with reported hours
- Inspect engine vibration and exhaust condition
Incorrect hour readings are common in used equipment transactions.
Hydraulic Pump Condition
The hydraulic system is the core of drilling performance.
- Check for oil leakage
- Test pressure stability during operation
- Listen for abnormal pump noise
- Inspect hydraulic oil cleanliness
A weak hydraulic pump can significantly reduce drilling efficiency.
Mast Welding and Structural Cracks
The mast structure carries the full drilling load and must be carefully inspected.
- Look for welding repairs or reinforcements
- Check for micro-cracks on stress points
- Inspect boom alignment and deformation
Structural issues are expensive to repair and may affect safety.
Rotary Head Wear Condition
The rotary head directly affects drilling torque output.
- Check gear wear condition
- Inspect bearing noise during rotation
- Test torque consistency under load
Excessive wear will reduce drilling efficiency significantly.
Kelly Bar Condition
The Kelly bar is one of the most expensive wear components.
- Check interlocking section wear
- Inspect deformation or bending
- Ensure smooth extension and locking system
- Verify lubrication condition
A worn Kelly bar can lead to unstable drilling and high replacement cost.
Final Recommendation
Both the SANY SR235 and XCMG XR240 are reliable mid-range rotary drilling rigs widely used in global foundation engineering projects.
The SR235 is better suited for heavy-duty and long-term foundation work, while the XR240 is more efficient for urban construction and cost-sensitive projects.
The final decision should be based on soil conditions, project duration, and operating budget rather than price alone.
Choosing the best rig depends on your priorities:
- Cost Efficiency: XCMG XR240
- Longevity & Resale Value: SANY SR235
- Project Type: SR235 for deep foundation/hard soil; XR240 for urban or flexible sites
FAQ
The SANY SR235 is generally better suited for bridge foundation construction.
It offers stronger structural rigidity and higher stability under heavy-load drilling conditions, making it more reliable for deep pile and long-span bridge projects. The XR240 can also be used, but it is more suitable for lighter or medium-duty foundation work.
The XCMG XR240 typically has lower long-term maintenance costs.
Its hydraulic and structural systems are designed with simpler maintenance requirements, and spare parts are generally more cost-efficient. However, in heavy-duty applications, the SR235 may offer better durability and lower downtime risk over time.
Yes, the SANY SR235 is suitable for hard soil and moderately hard rock conditions.
It is widely used in foundation projects involving dense soil layers and mixed geological formations. For extremely hard rock conditions, it should be combined with appropriate drilling tools such as rock augers or core barrels.
The SANY SR235 generally has higher resale value in Africa and the Middle East markets.
This is due to its strong global brand recognition, wider service network, and higher demand in large infrastructure projects across these regions. The XR240 maintains good resale value as well but is usually more price-sensitive.
A well-maintained rotary drilling rig typically has a service life of 8–12 years.
If the machine is properly maintained and key components such as the hydraulic system, rotary head, and Kelly bar are regularly serviced, both SR235 and XR240 can remain reliable even in heavy-duty construction environments.
