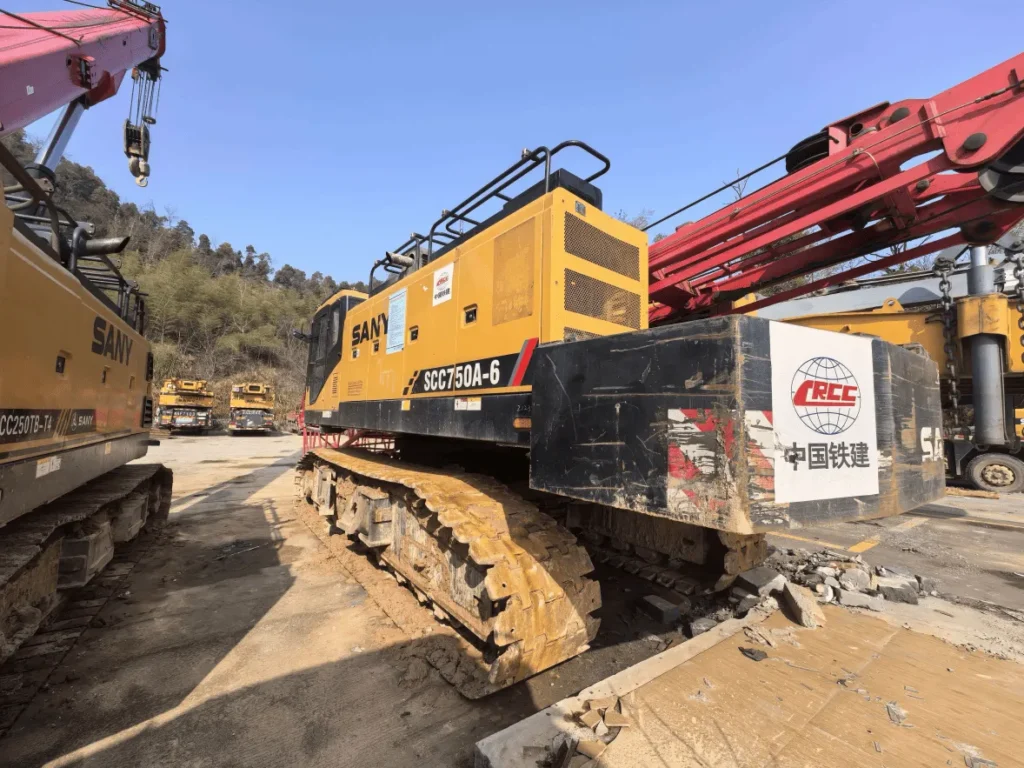

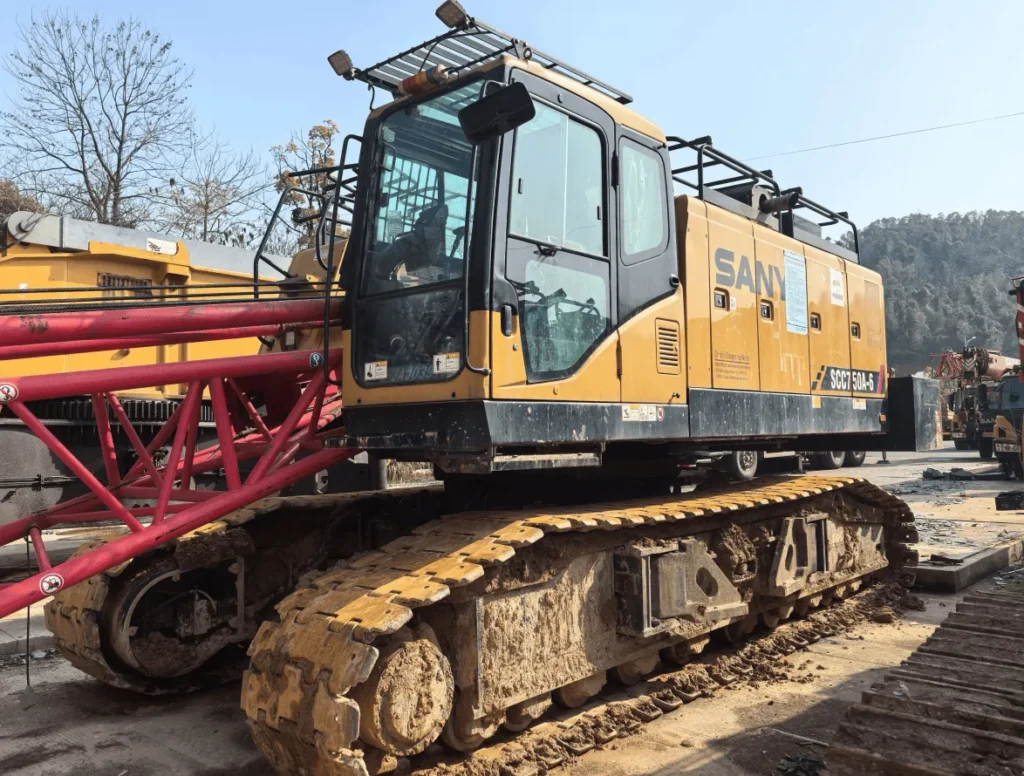

The 2021 used SANY SCC750A-6 crawler crane is a highly reliable 75-ton lifting solution designed for foundation construction, infrastructure projects, bridge works, and heavy-duty lifting applications. Equipped with a powerful WEICHAI engine and advanced hydraulic system, this model delivers stable lifting performance and excellent operational efficiency even under demanding job site conditions.
Widely used in bored pile construction and large-scale civil engineering projects, the SCC750A-6 offers strong adaptability with its detachable crawler structure for convenient transportation and quick assembly. The intelligent Load Moment Indicator (LMI) system ensures safe lifting operations by providing real-time monitoring and fault diagnosis, making it an ideal cost-effective choice for contractors seeking dependable used crawler cranes.
Technical Specifications (Typical / Reference)
| Parameter | Specification |
|---|---|
| Model | SANY SCC750A-6 |
| Rated Lifting Capacity | 75 t |
| Maximum Lifting Moment | 300 t·m |
| Typical Main Boom Length | 12 m – 57 m |
| Fixed Jib Length | 9 m – 18 m |
| Longest Boom + Jib Combination | 45 m + 18 m |
| Engine Model | WEICHAI WP7 |
| Engine Rated Power | 199 kW / 2300 rpm |
| Main Winch Rope Speed | 0 – 135 m/min |
| Swing Speed | 0 – 2.5 rpm |
| Travel Speed | 0 – 1.1 km/h |
| Gradeability | 30% |
| Operating Weight (Basic Boom) | 66.7 t |
| Ground Pressure | 0.077 MPa |
| Travel Type | Crawler |
| Application Type | Construction & Heavy Industrial Lifting |
| Condition | Used / Refurbished / Export Ready |
Note: Actual specifications may vary depending on production year, configuration, and machine condition. Full inspection reports, load charts, and working videos are available upon request.
Data based on manufacturer specifications
Key Performance Highlights
✔ Powerful 75-ton lifting capacity for foundation and infrastructure projects
✔ Maximum 57 m main boom for versatile lifting operations
✔ Free-fall function on main & auxiliary winches for pile driving work
✔ Intelligent LMI system for safe and precise load monitoring
✔ Stable crawler undercarriage for improved job site mobility
✔ Fuel-efficient WEICHAI engine for reduced operating cost
✔ Detachable crawler frames for easy transport and quick assembly
✔ Ideal for bridge construction, bored piling, and port projects
